CNC production & CAM programming

MILLING: STARRAG ZS 500-130

5 axis horizontal machining center / 4 pallets

  • Control - Siemens 840 D
  • X-axis = 800 mm
  • Y-axis = 750mm
  • Z-axis = 620mm
  • A-axis = 145° (+35°/-110°)
  • B-axis = 360° x 0.001 / 30 rpm
  • Spindle= Step-Tech / 12'000 rpm
  • 89 tools

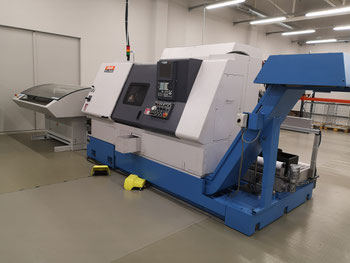

TURNING: MORI SEIKI NL 1500 SY

  • Control - MITSUBISHI MSX-850 III
  • Z-axis - 590 mm
  • X-axis - 260 mm
  • Y-axis - 100 mm
  • 2 spindels / 6000 rpm
  • Driven tools
  • Tool measuring system
  • Loader Hydrobar Sprint 555 / 61mm



GRINDING: KELLENBERGER 600

External and internal grinder

  • Centre height = 125 mm
  • Distance between centres = 600 mm
  • Grinding wheel = 400m x 50mm
  • Speed = 1500 - 3600 rpm
  • Angular displacement = 270°
  • Work piece spindle = 20 - 400 rpm
  • Internal grinding = 14'000 rpm
  • Table angular displacement = 10°
